GOL2
Technical data
Controlling loop
Voltage: 230VAC, 50Hz
Minimum duration time for reclosing: >200mS
Responding time: <200mS
Power consumption: <1W
Protection degree MCB: IP20
Protection degree with box: IP55
Insulation degree: II
Insulation voltage(Ui): 400V
Rated impulse withstand voltage (Uimp): 6000V
Operating temperature: -25~60
Storage temperature: -40 ~ 70

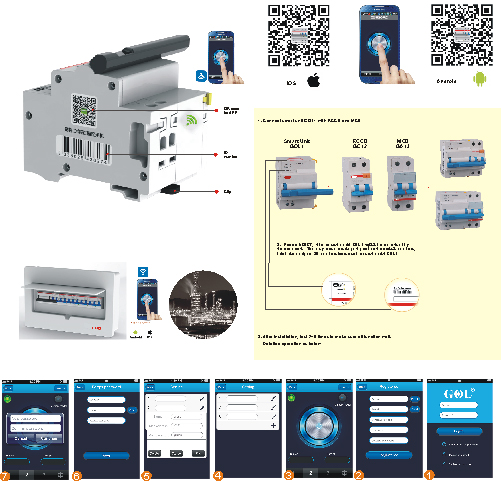

Features of smart breaker
1. This second generation smart unit GOL2 is fully and newly updated unit based on the first generation of GOL1.
2. This new smart unit is more compact: only half size of GOL1
3. GOL2 includes function module, LED indicator, mechanic lock, easier reset, etc.
4. This new smart unit GOL2 is fully compatible with all our new compact 9mm MCB, single pole RCBO, 10kA MCB, and IP65 waterpoof box, etc.


GOL1
Technical data
Controlling loop
Voltage: 230VAC, 50Hz
Minimum duration time for reclosing: >200mS
Responding time: <200mS
Power consumption: <1W
Protection degree MCB: IP20
Protection degree with box: IP55
Insulation degree: II
Insulation voltage(Ui): 400V
Rated impulse withstand voltage (Uimp): 6000V
Operating temperature: -25~60
Storage temperature: -40 ~ 70
Features of smart breaker
1. We apply internationally generic high-tech to realize remote intelligent controlled by phone.
2. To reclose the tripped MCB based on IEC standard;
3. Modular assembly system enables customers to autonomously choose the controlling mode: GPRS and wifi are both available.
4. The product has automatic memory function, even when WiFi and GPRS are both unavailable, and realize automatic closing within 5~10 inutes.
